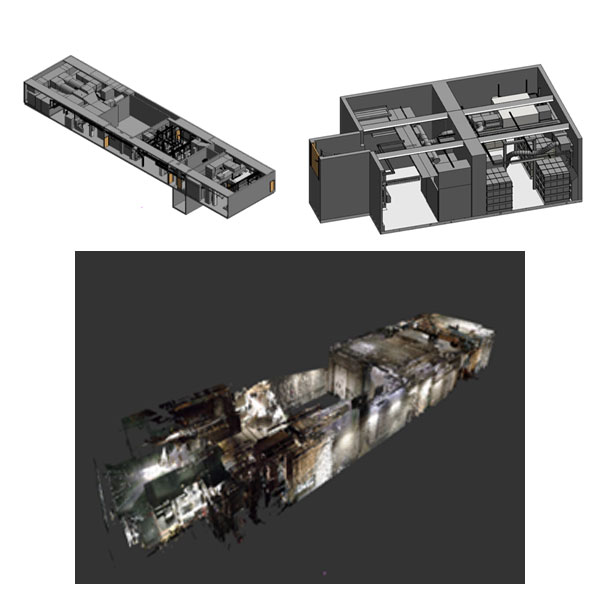

Creation of 3D Model
We create 3D model from scan document or point cloud files. We use to link the impact scan files to revit to work on for all trades each element as per standard requirement.
Supporting Software Applications like Revit & Autodesk Recap 360 Pro for Point Cloud help to visualize and navigate the point cloud files properly. Moreover, by using these software platforms, files can be compressed and dimensions can be easily obtained for BIM model.

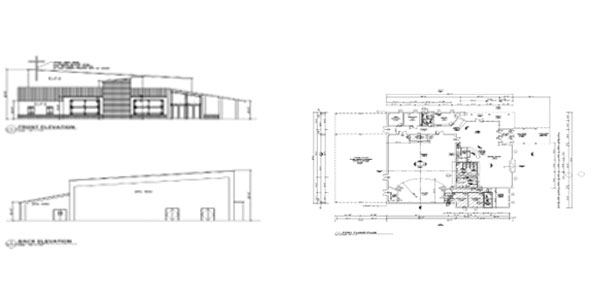

Construction Drawing
Once 3D model works use to completed. We do our standard QC1 to finalize the 3D model. After approval from the client, we use to generate the construction drawings or as built drawing sheet with proper annotation and dimension and standard requirement.
Input Approved 3D model
COBIE BIM
COBIE data is the technical information or approved technical submittals which are collected from scanned submittals.
We use to fix parameter sheet from submittals or sometime client use to same with us the standard parameter to fill. We incorporate COBIE data after completion and approval of BIM 3D model.
| Brand | Schweigen X |
|---|---|
| Product Type | Onboard Rangehood |
| Product Category | Undermount |
| Product Model | MSWX90 |
| Product Code/SKU | MSWX90 |
| EAN | 9343415007112 |
| Product Descriptor | Undermount Rangehood 900mm (Non-Silent) - MSWX90 |
| Dimensions | W:900 x D:295 x H:325mm |
| Lights | 2 x LED |
| Wattage | 2 |
| Filter Type | Stainless Steel - Baffle |
| Filter Qty | 2 |
| Finish | Stainless Steel |
| Motor Type | Single Internal Motor |
| Fan Speeds | 5 |
| Airflow (m3/h) | 1110 |
| dBA (Low) - 0.3m front | 47.1 |
| dBA (High) - 0.3m front | 66.9 |
| Inbuilt Motor Power | 260W |
| Control | Touch & Remote |
| Auto Off | 10 min |
| Warranty on Motor | - |
| Warranty on Canopy | - |
| Warranty on Unit | 5 Years |
| Warranty on Filters | Lifetime |
| Warranty on GU10 Globes | - |
Our BIM team to incorporate the COBIE data in the BIM model, family which use to control and maintained for BIM records as built.
This data use very handy for as built records and controls.
Input Project stakeholders to organize approved electronic submittals from point cloud scanned data during renovation and extension through facility management.
