We follow our own CAD standards to execute the CAD project smoothly and efficiently and standards are acceptable in all over the world. Our basic project CAD standards are as follows.
Scale: We fix the Scale to set the view port for proper Sheet Size. As per the input file we set our CAD standard of Scale to start our work and put it in our production for further processing.
Annotation: We calculate the standard TEXT height as per the Drawing Scale. We provide the Standard Texts which drawing need.
Dimension: We do the dimension style as per the standard and drawing requirements.
Layering: We provide the standard Layers and convert the drawing as per the subjective layers drawing needs.
Line Types: We maintain the proper line types which need the drawing. As per the standard practice Line types are very important part of the drawing and we follow it.
Standard Blocks
We maintain the Standard Blocks.
CAD REDLINE MARK-UPS (AS BUILT)

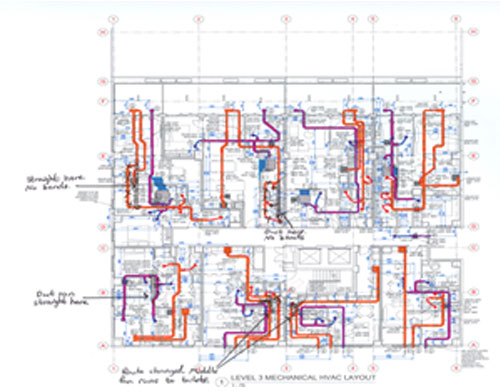

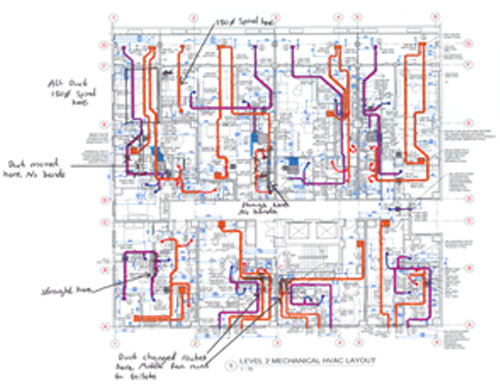

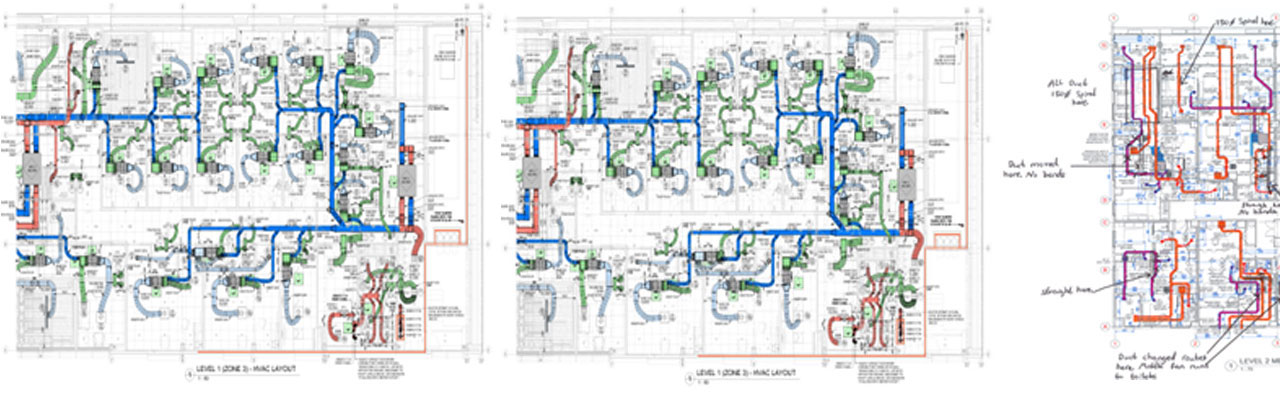

Our As-built/Redline Markup Service is ideal for creating your as-builts drawings or design modifications in AutoCAD. Few ways to send us your redlines markups done on DWF or PDF Actual Hard copies shipped to us with scanned color images of redline drawings sent to us.
Markups:
RED ink for drawing changes
BLUE ink for notes.
